Delabie Mirror Boxes
Introducing the Delabie Mirror Boxes – an innovative solution designed to bring elegance, efficiency, and hygiene to commercial washrooms. Available in both 4 in 1 and 3 in 1 configurations, these units combine multiple essential washroom functions into one sleek design. The 4 in 1 model integrates a mirror, soap dispenser, tap, and hand dryer (or paper towel dispenser), while the 3 in 1 option offers a mirror, soap dispenser, and hand dryer (or paper towel dispenser) for environments where a tap is not required. Both options feature a matte black finish with subtle ambient lighting. Sensor activation ensures touch free operation, creating a truly hygienic and user friendly experience.
With Delabie’s renowned design and engineering excellence, these mirror boxes offer both functionality and a premium aesthetic, making them ideal for modern public spaces that demand beauty, utility, and durability.
Applications
Delabie Mirror Boxes are ideal for a wide range of commercial and public washroom environments. They are particularly suited to high traffic areas such as airports, shopping centres, hotels, healthcare facilities, and educational institutions where hygiene, efficiency, and vandal resistance are essential. The integrated design reduces clutter and creates a streamlined, contemporary finish suitable for premium projects.
Features
- 4 in 1 Functionality: Mirror, soap dispenser, tap, and hand dryer (or paper towel dispenser) integrated into one unit.

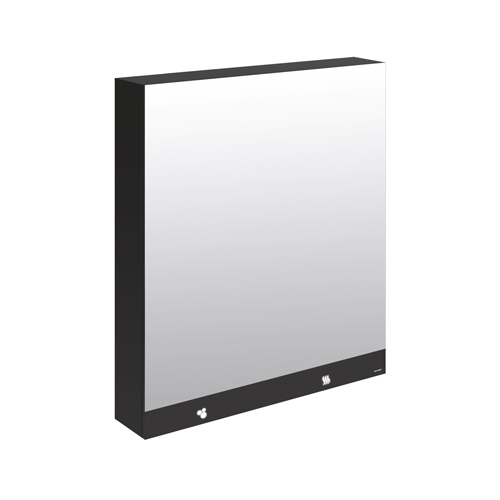

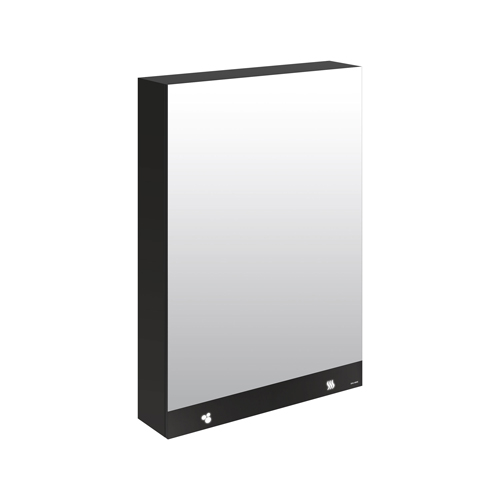

- 3 in 1 Functionality: Mirror, soap dispenser, and hand dryer (or paper towel dispenser) for projects that do not require an integrated tap.
- Touch Free Operation: Infrared sensors for soap, water, and drying functions ensure maximum hygiene.
- Premium Build: 304 stainless steel cabinet with a matte black melamine finish and illuminated pictograms for intuitive use.
- Water Efficiency: Flow rate preset at 3 L/min, adjustable down to 1.4 L/min (4 in 1 models with tap).
- Fast Hand Drying: Air pulse hand dryer dries hands in 10–12 seconds with low energy consumption.
- Large Soap Capacity: 5L soap tank with a no waste pump suitable for liquid or foam soap.
- Easy Installation: Single electrical supply, top or recessed inlets, adjustable hinges, and concealed fixings.
- Vandal Resistant: Lockable cabinet with a standard Delabie key.

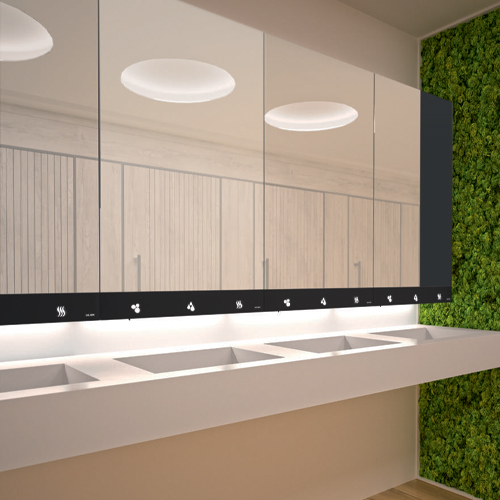

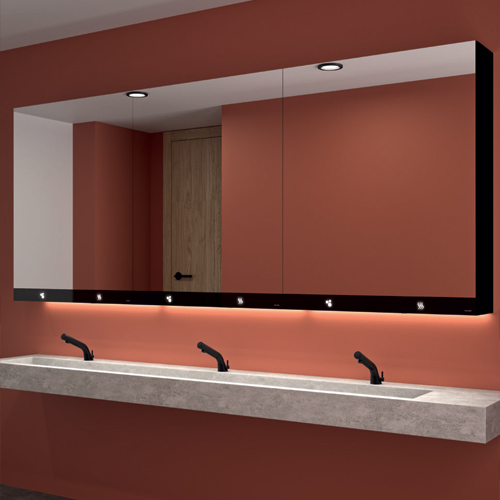

- Modular Installation: Multiple cabinets can be installed side by side to create a seamless mirror wall.
Technical Details
- Material: 304 stainless steel with matte black melamine finish, glass mirror with black glass strip.
- Power Supply: 230V / 50 60Hz mains supply for all integrated elements.
- Hand Dryer Performance: Pulsed air at 360km/h, airflow 36L/sec, noise level 74 dBA, 704W power consumption.
- Warranty: 30 years (3 years for the hand dryer) and 50 years repairability.
- Dimensions: Available in 600mm and 800mm widths with hand dryer or paper towel options, in both 4 in 1 and 3 in 1 models.
Optional Models
- Mirror with integrated soap, water, and hand dryer.
- Mirror with integrated soap, water, and paper towel dispenser.
- Mirror with integrated soap and hand dryer (3 in 1).
- Mirror with integrated soap and paper towel dispenser (3 in 1).
- Units for installation behind mirrors to suit bespoke furniture.
Why Choose Delabie Mirror Boxes from Total Laminate Systems
At Total Laminate Systems, we are proud to supply and install Delabie Mirror Boxes as part of our washroom solutions. Combining cutting edge technology, easy maintenance, and a sleek design, these units are perfect for high end projects where style and practicality must go hand in hand. Contact our team today to discuss how Delabie Mirror Boxes can elevate your washroom specification.
